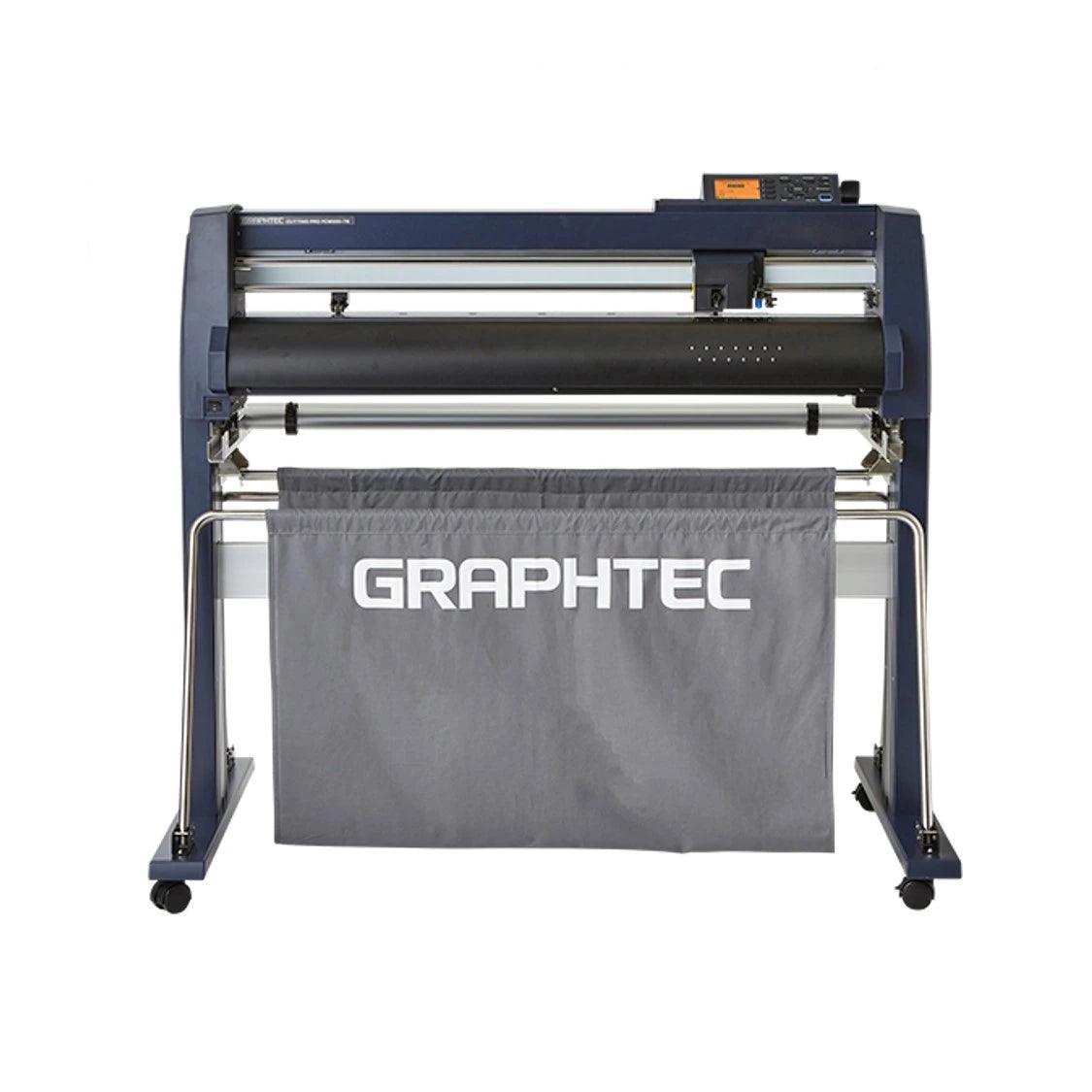

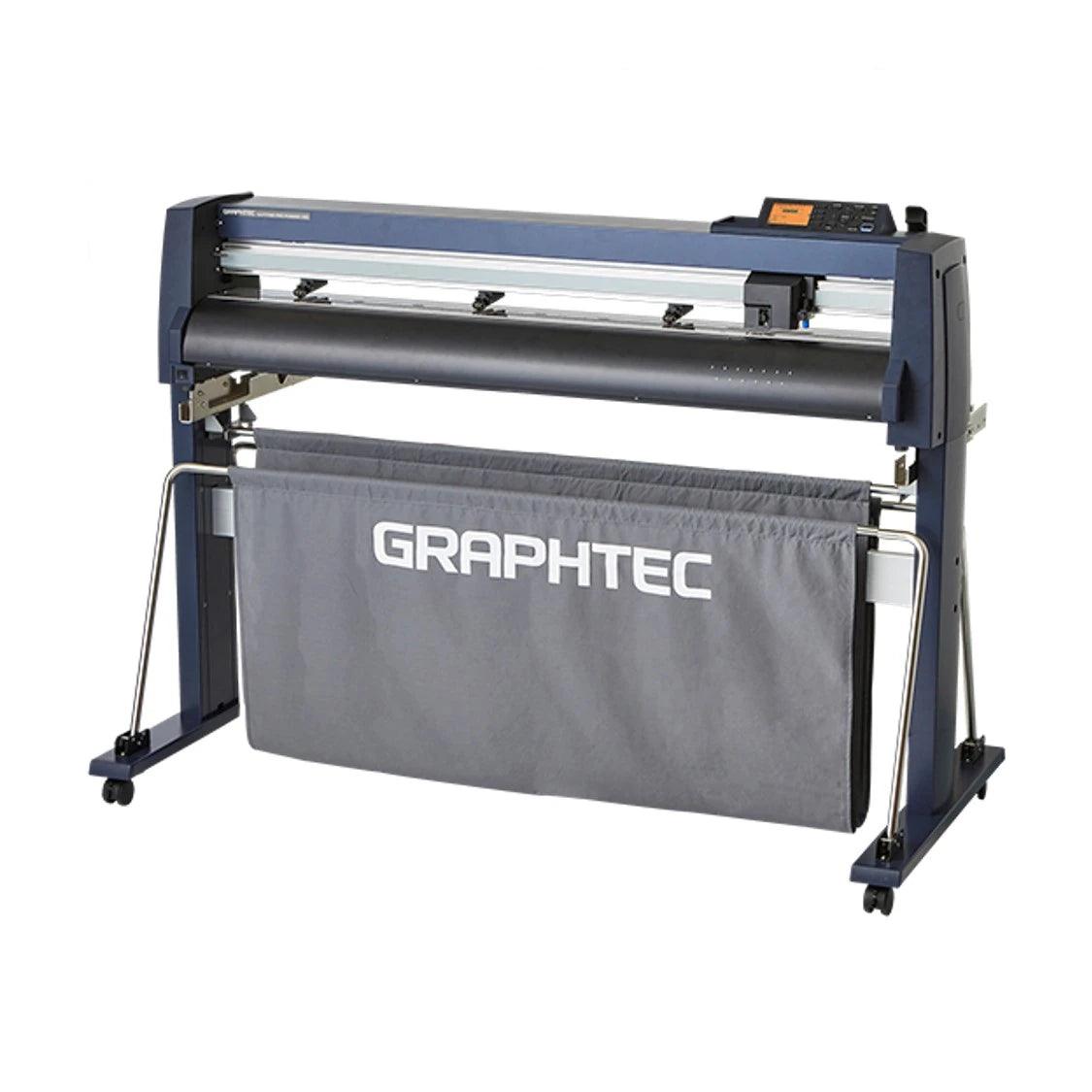

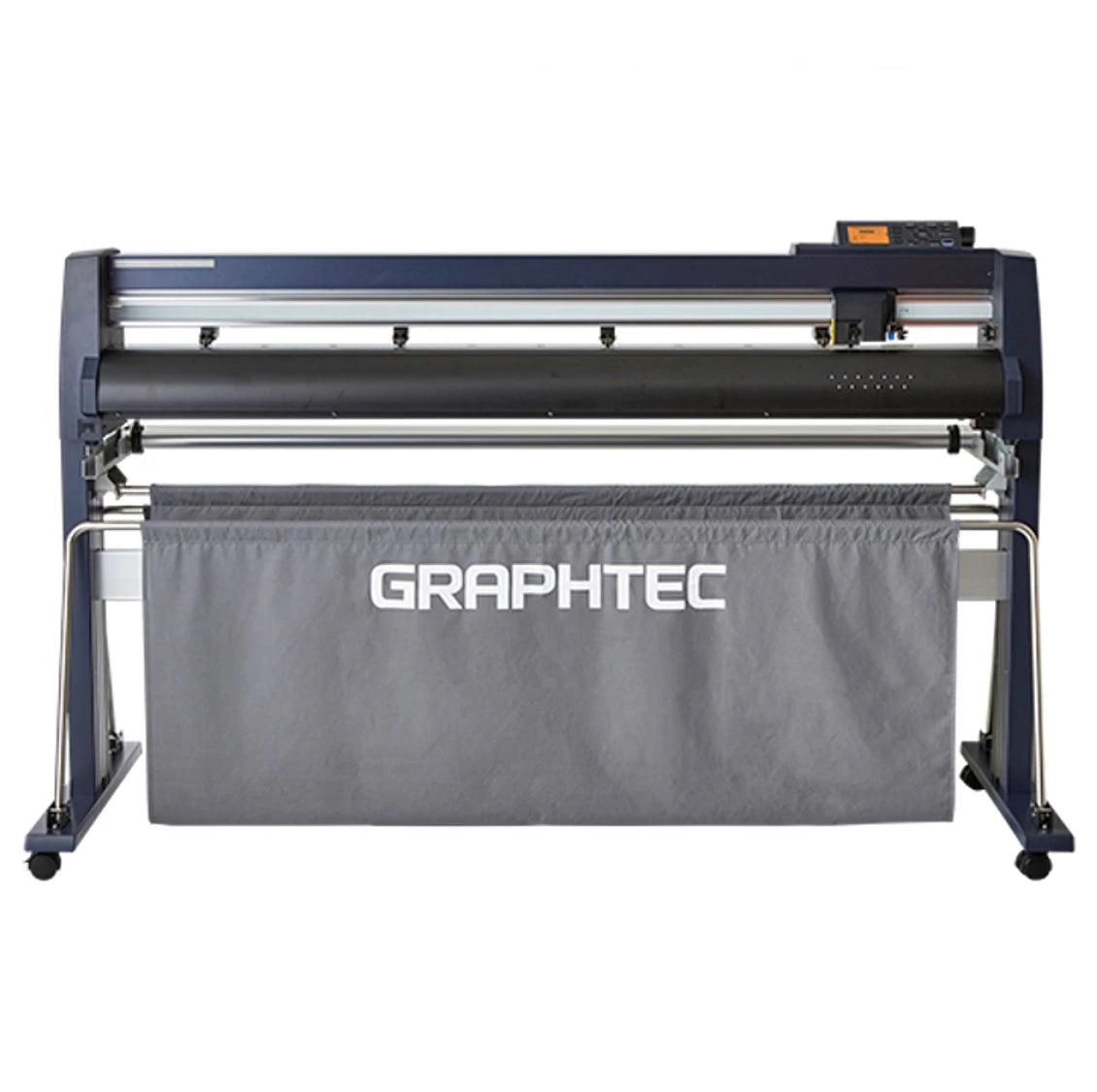

Graphtec FC9000 Pro Series Cutting Plotter

Name: Graphtec FC9000 Pro Series Cutting Plotter
Brand: Graphtec
SKU: GRAFC9000-100
Availability: InStock

1 1

Get a Quote Speak to a consultant 01948 800379

The Graphtec FC9000 Series is a high-performance roll-fed cutting plotter designed to deliver precise cuts and exceptional productivity.

Ideal for a wide range of applications, including sign making, vehicle graphics, and apparel customisation.

The Ultimate Print Finishing Solution

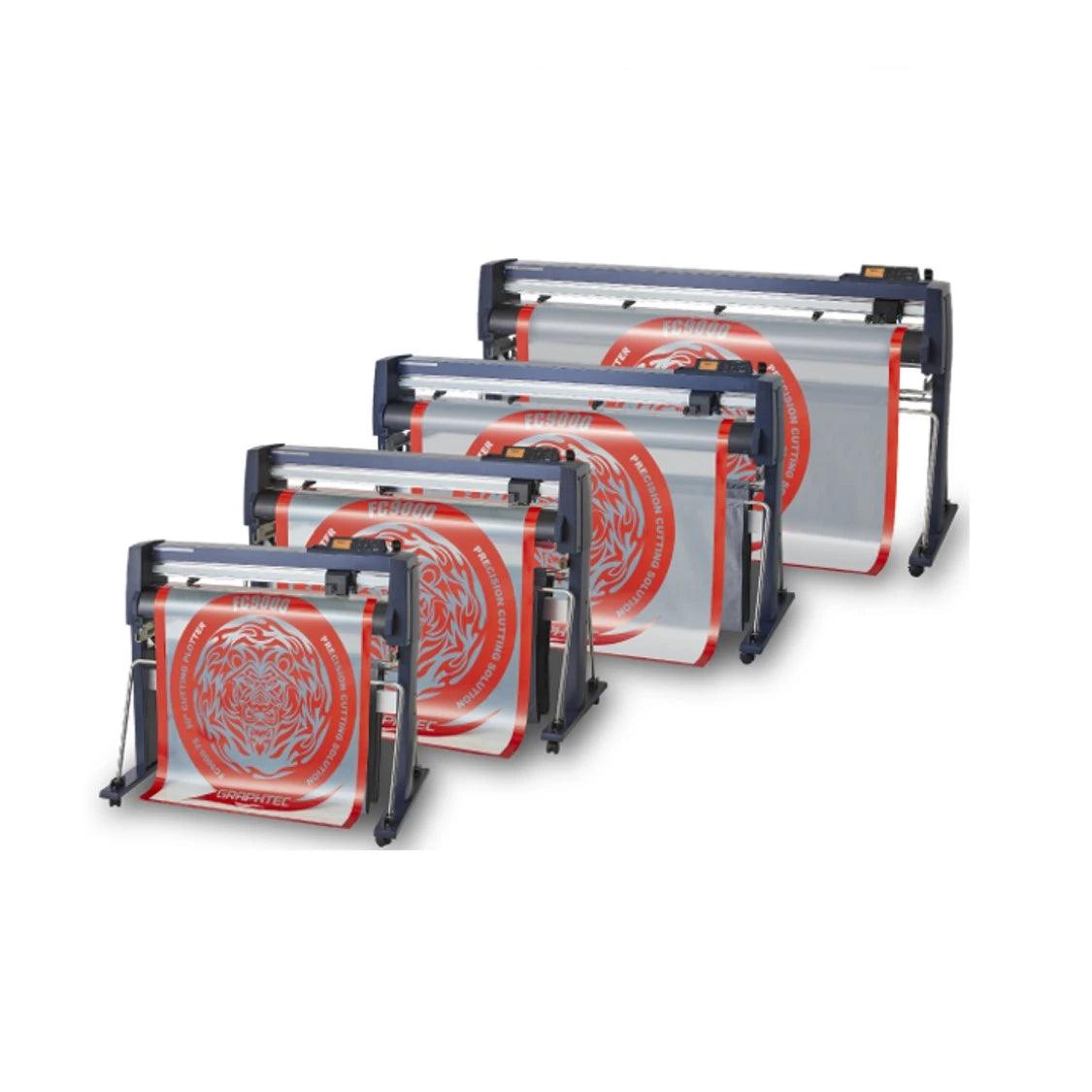

4 Widths Available: 75cm | 100cm | 140cm | 160cm

Maximum Cutting Speed: 1485mm/s
Cutting Force: Max 5.88N (600gf)
Networking Capabilities
Data Link Function (Barcode Reader)

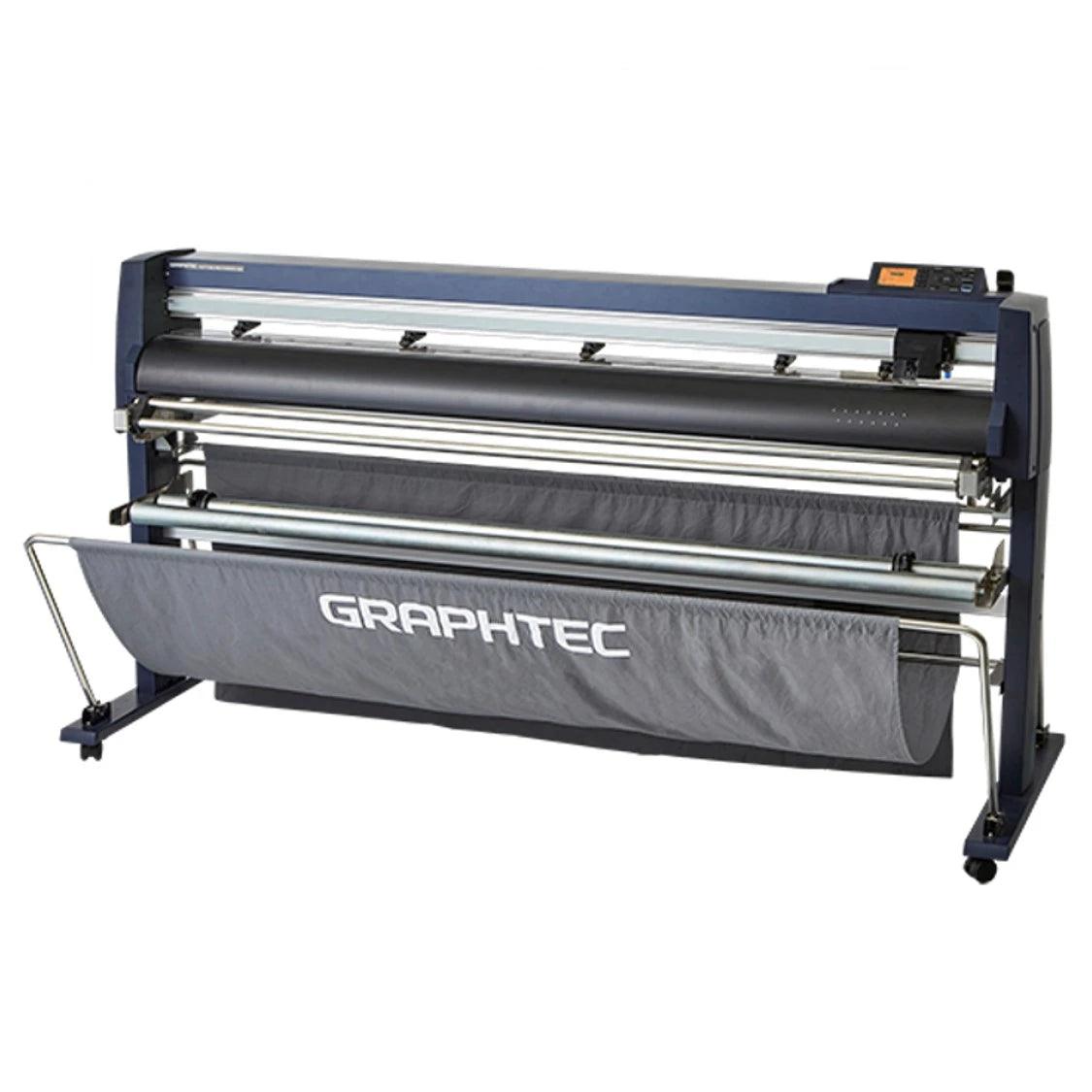

Optional Automatic Take-Up Spool For 140 & 160 Models
In-Built Cross-Cutter Function For Sheet Off
Servo Driven Grit Roller Type
Buffer Memory: 2MB
Warranty: 3 Years
Graphtec Pro Studio (For Windows)
Graphtec Studio (For MAC)
Cutting Master 4 (For Adobe Illustrator & CorelDRAW Integration)

Do you have a question ? Click here to ask us :-)

Finance options available

Want more info and/or to find out what's included : Click here to ask us

Brochure

Features & Specs

Request FREE Samples

Discuss ROI

Finance

Book a Demo

Brochures for Graphtec FC9000 Pro Series Cutting Plotter

Download Brochure FC9000_brochure.pdf

High Specification Print & Cut

DID YOU KNOW? WE OFFER FINANCE | On our Hardware products Click here for more information >

The FC9000 Series offers best in class
productivity and abilities with a wider
range of medias from thick to thin.

What can it cut?

Most print and cut media types:

Vinyl

Coloured Vinyl

Papers

Card Stock

Unsure if it will cut your material .. ? click here and ask us

Graphtec FC9000 Pro Series Cutting Plotter

100cm

Bespoke packages available, ask us for best price

100cm

Includes

Power cord
USB Cable
Cutting blade holder
Cutting Blad
Loupe
Fiber-tip pen holder
Water-based Fiber-tip pen
Stand
Media Stocker
Basket
DVD-ROM
Instructions

Optional
Automatic Take-up Roller
Additional push roller kit
2nd pen holder For dual tool configuration
Flange
Graphtec Pro Studio Plus
Graphtec Pro Studio Plus for Rhinestone
Graphtec Pro Studio Plus for Auto Nesting

140cm

Bespoke packages available, ask us for best price

140cm

Includes

160cm

Bespoke packages available, ask us for best price

160cm

Includes

75cm

Bespoke packages available, ask us for best price

75cm

Includes

Equipped with advanced functions for
high productivity, such as enhancing
ease-of-use and shortening cutting
time.

Reliable long-length tracking

It supports long-length, 15m (50ft) and makes possible to cut large signs/pops with stable paper carriage and high accurate cutting quality. In addition, if Automatic Take-up Roller as option is equipped to plotter, it becomes possible to automatically wind media and improve your work efficiency.

Wide area for full use of paper

Minimum cutting width is 50mm (1.96 inch). Maximum cutting width depends on each machines; 762mm (30 inch), 1067mm(42 inch), 1372mm (54 inch), 1626(64 inch).

Auto panelling

To prevent skew of long-length cutting, this function makes possible to automatically split long-length jobs into smaller pages that are cut sequentially. It shortens feed length and enables stable cutting. It is useful for cutting with higher accuracy or beyond guaranteed long length.

Data output via USB flash memory without PC

When cutting data designed with Cutting Master 4 or Graphtec Pro Studio / Plus are saved to USB flash memory, they can be output directly to the cutting plotter by plugging in. This simplified work-flow enables users to operate without a computer.

User-friendly control panel

3.7inch LCD display and easy-to-use control panel supports 10 languages.

Improved ARMS for high precision cutting ARMS 8.0

The Advanced Registration Mark Sensing system delivers precise Print & Cut results by using sensors to detect registration marks and perform axis alignment. Countless efficiency boosting features improve productivity for print & cut applications such as stickers and decals.

Data Link Function (Barcode Data Management/Continuous Cutting)

By reading Graphtec original barcode, FC9000 automatically detects its linked data from PC or USB flash memory. This function is available regardless of which printer or RIP software is used.

Supports colored marks / specialty media

A wide variety of media types including holographic paper and reflective sheets are now compatible due to improvements of the ARMS sensor algorithm.

Supports Adobe Illustrator Crop Marks

Using the plug-in software Cutting Master 4, Adobe Illustrator crop marks will be availble.
