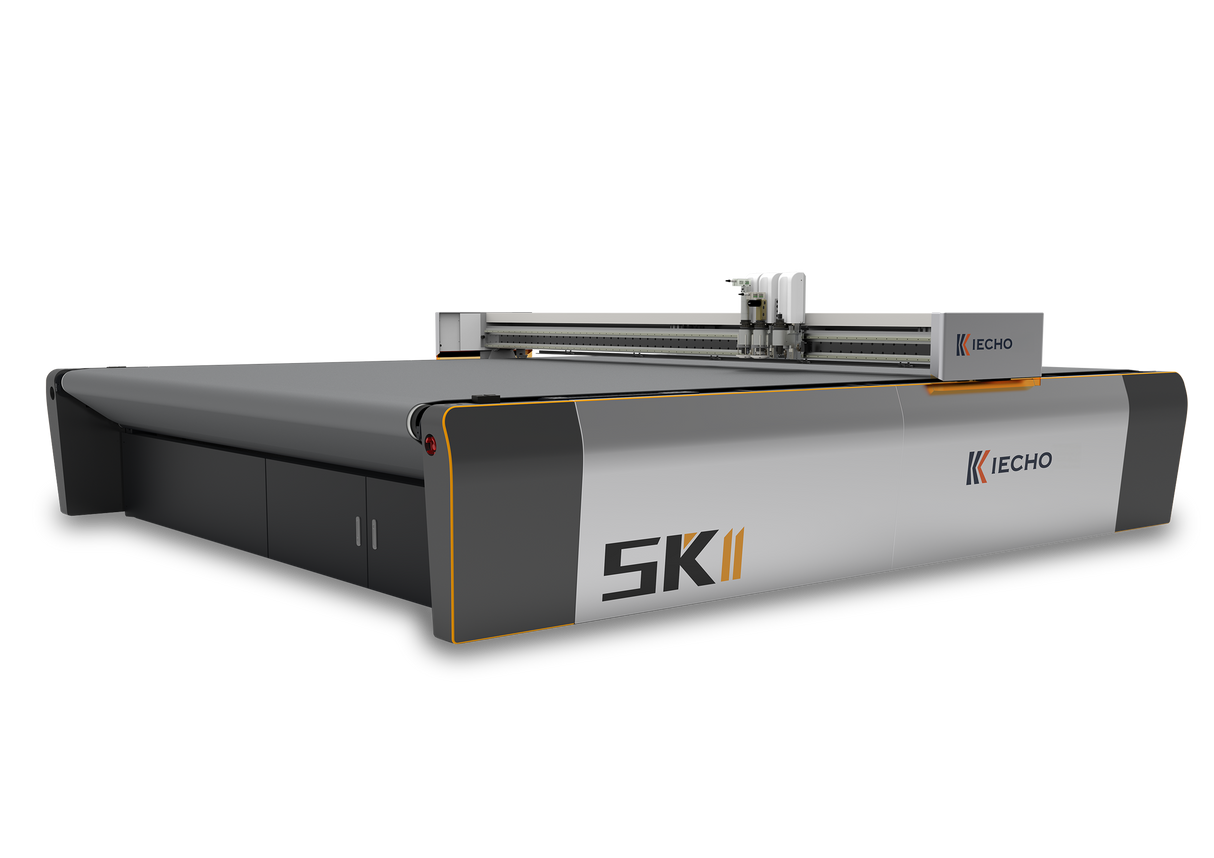

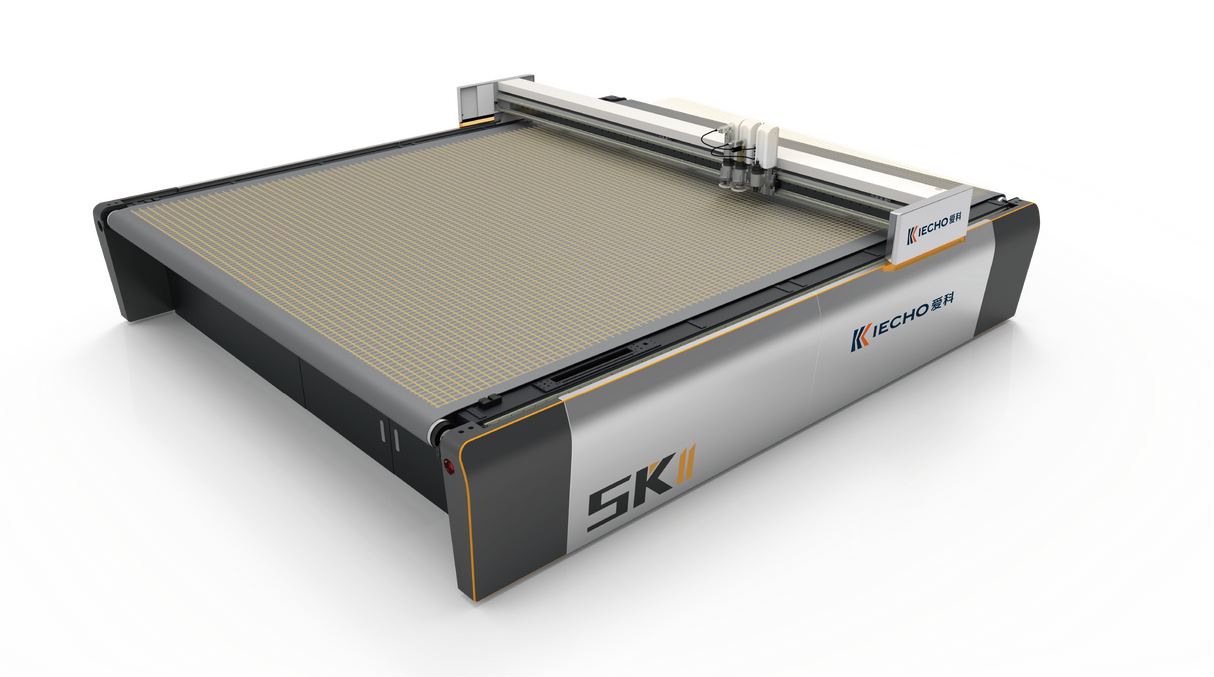

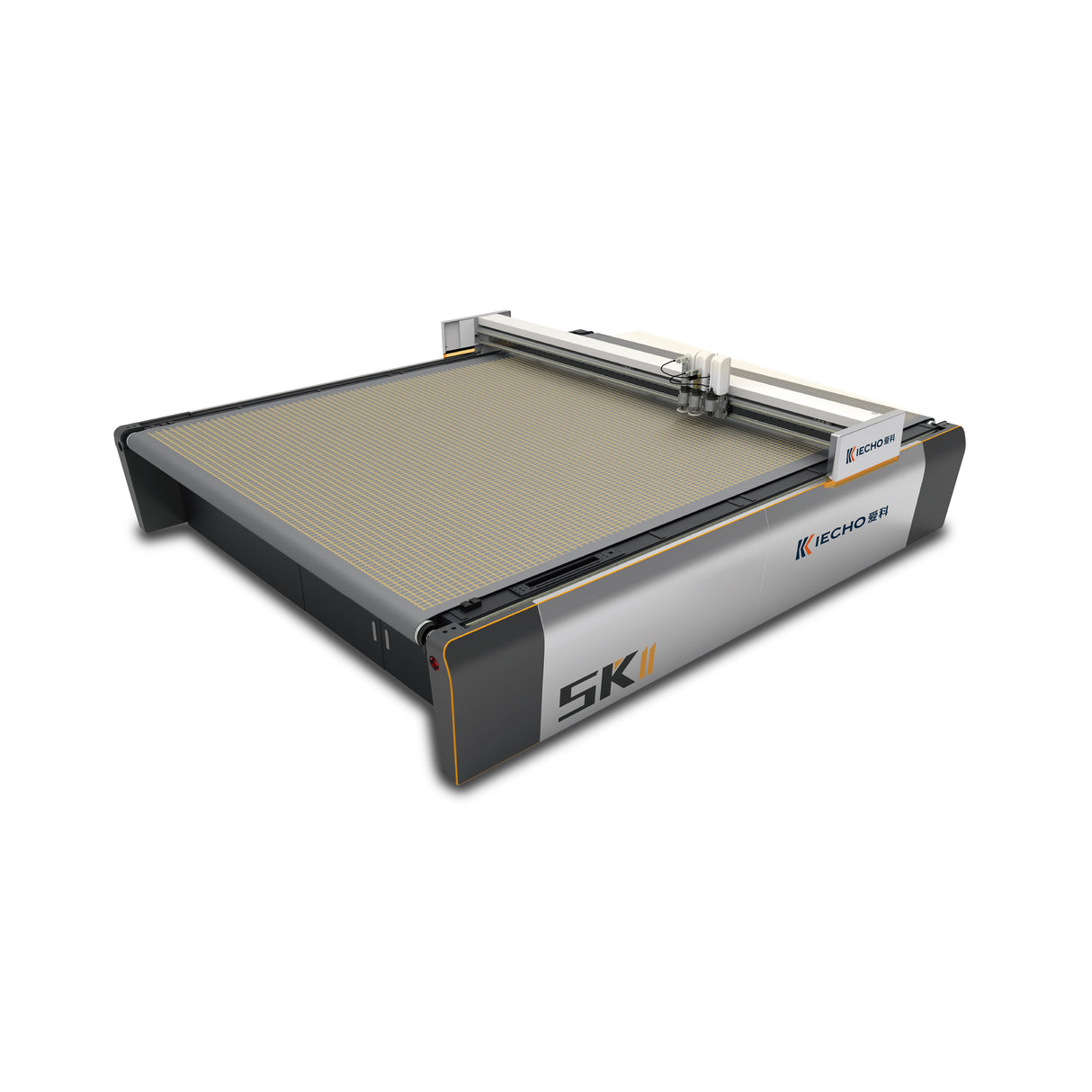

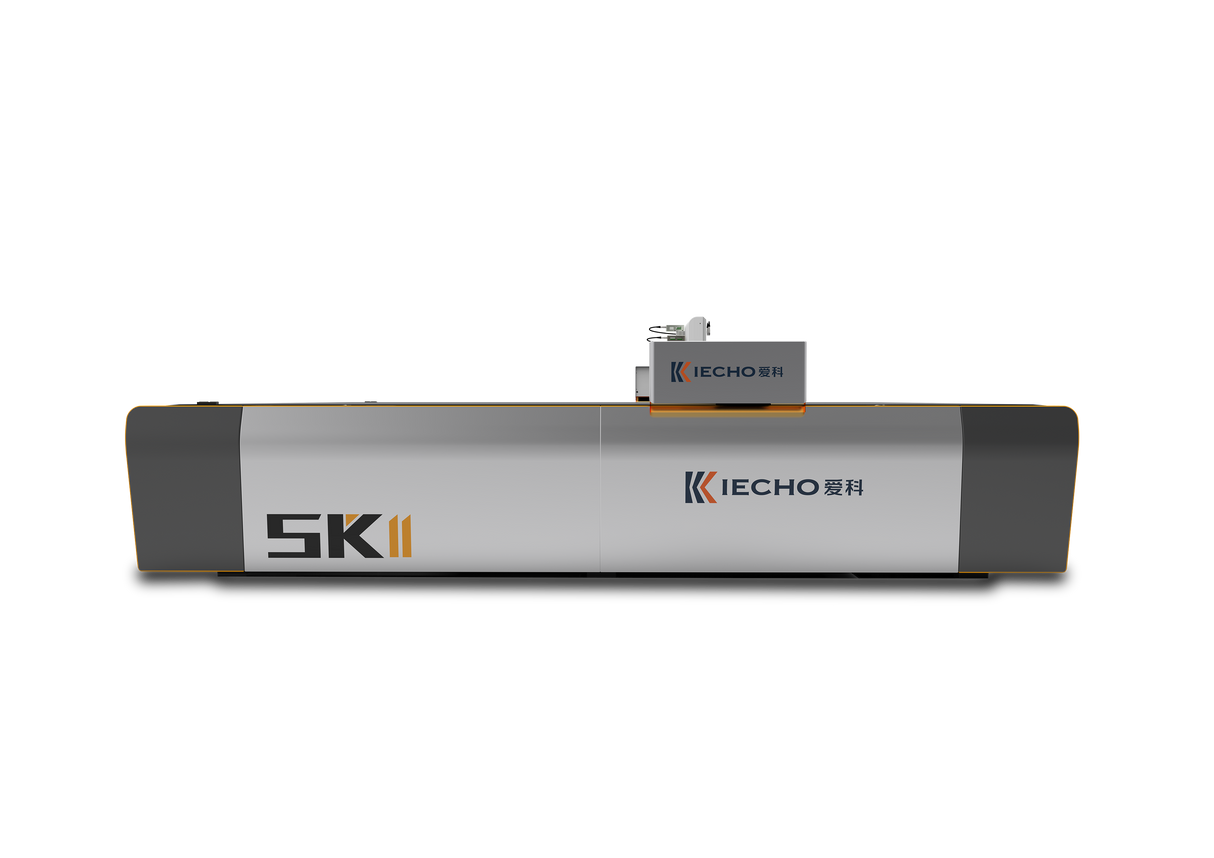

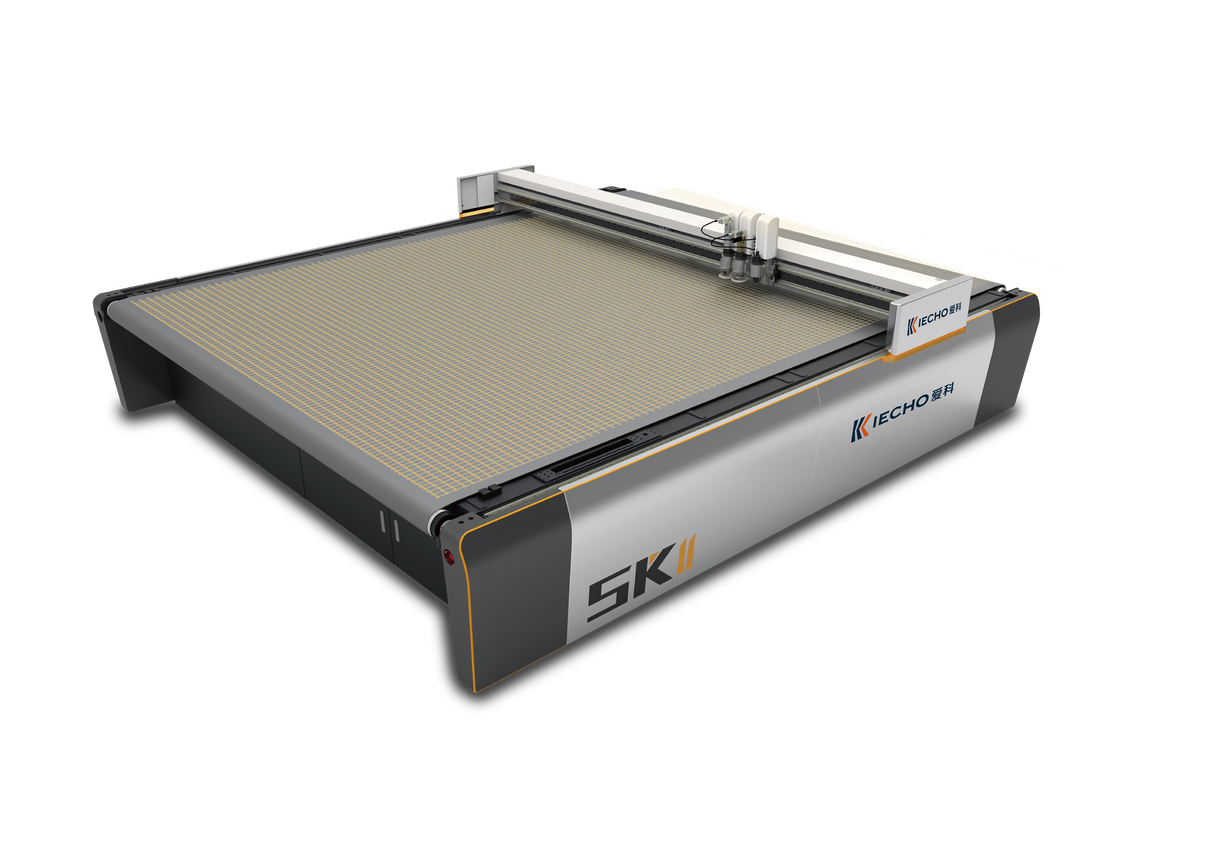

IECHO SKII Digital Flatbed Cutter
Description
Description
Top-Spec IECHO Digital Flatbed Cutter
- 3 Bed Sizes available:
- 2.5m x 1.6m / 3.5m x 1.6m / 3.5m x 3.2m
- 50mm Max material thickness
- 2000mm/s Maximum cutting speed
- 3 x Heads including Router
- Automatic camera positioning system
- Automatic blade depth adjustment
- Mutliple tool options
- I-echo safety device
- Flexible working area
- Aviation Aluminium table
SKⅡ-2516 / 2.5m x 1.6m
SKⅡ-3516 / 3.5m x 1.6m
SKⅡ-3532 / 3.5m x 3.2m
ECHO SKII High-precision multi-industry flexible material cutting system adopts the linear motor drive technology,which replaces the traditional transmission structures such as synchronous belt,rack and reduction gear with electric drive motion onto connectors and gantry and achieve the fast response by the “Zero”transmission.With a maximum movement speed of up to 2.5m/s and the accuracy can reach 0.05mm.It is possible to quickly cut a set of clothing and sofa in a short period of time, bringing great convenience to industry manufacturers and designers.
IplyCut, the supporting software for SKII, has the functions of automatic nesting and rapid formation of optimal cutting paths.IECHO automatic nesting system can help enterprises to realize full automation of nesting in such links as sample accounting, order quotation, material procurement, production and cutting.
IECHO SKII is equipped with three heads, which can realize high-speed cutting and high-precision punching at the same time. This allows the device to meet conventional cutting needs while also responding to more complex design needs, greatly improving production efficiency.
In addition to the core cutting device, SKII also offers a wide range of optional solutions. The projection can quickly achieve sampling and the vision scan cutting system can realize high-speed and high-precision large scale scanning and can real -time capture graphics and contour, dynamic continuous shooting, one -click continuous cutting, etc.
With the help of IECHO SKII cutting system, manufacturers and designers can efficiently complete the cutting work of hundreds of sets of clothing and sofa, which will undoubtedly greatly reduce the production cycle and cost.
The 12mm steel frame has what’s known as qualified connection technology – it’s more stable, more robust – and the machine body frame itself weighs 600KG. It’s a solid piece of kit. The table’s strength has been increased by 30% too, so vibration isn’t a problem. It’s reliable and durable.
IECHO SKII cutting system is suitable for various fabrics, whether it is natural fibers, synthetic fibers, or special materials, and can ensure cutting accuracy and efficiency. Its excellent performance and wide applicability make it an ideal choice for various textile industry enterprises such as clothing factories and home furnishing factories.
