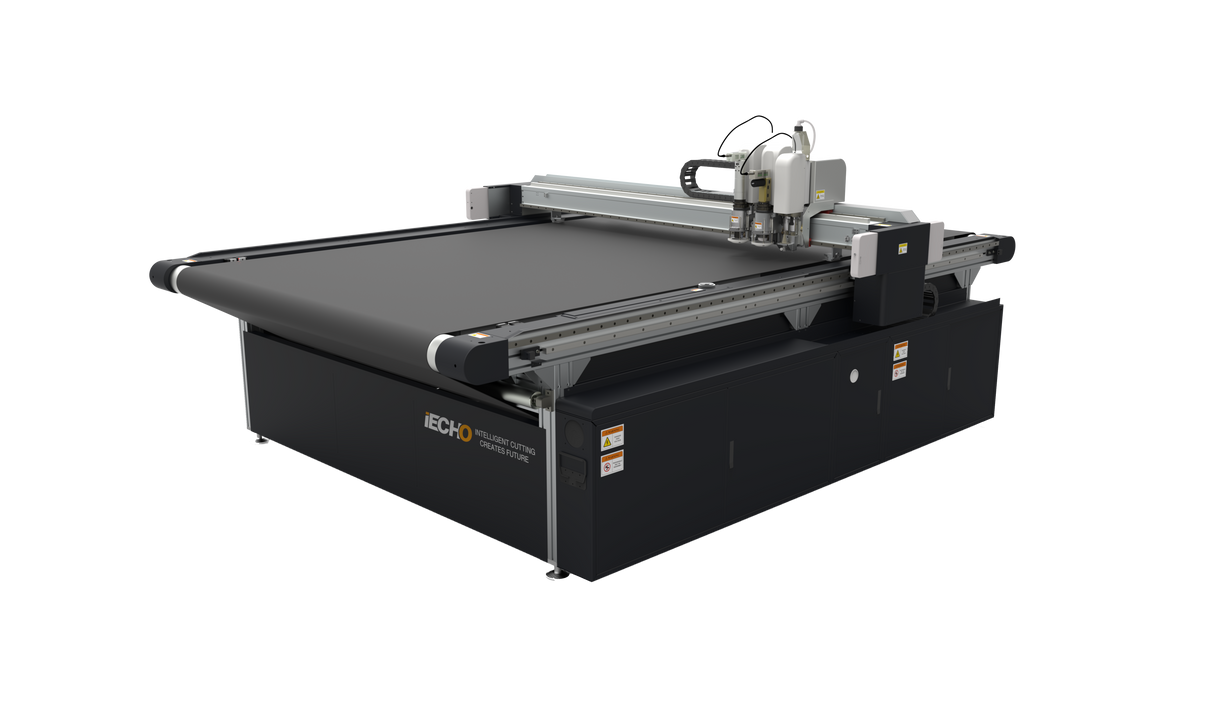

IECHO TK4 - Bespoke Digital Flatbed Cutter

Request more information

Speak to a solutions consultant : 01948 800379

Help me choose the right machine Request a Quote

Description

Bespoke Digital Flatbed Cutter

Modular. Built to your specifications.

11 Standard bed sizes available: 1.5m x 1.6m / 2.5m x 1.6m / 3.5m x 1.6m / 5.5m x 1.6m / 2.5m x 2.1m / 3.5m x 2.1m / 5.5m x 2.1m / 2.5m x 2.65m / 2.5m x 3.2m / 3.5m x 3.2m / 5.5m x 3.2m
Can be customised to meet your requirements
50mm Max material thickness
1500mm/s Maximum cutting speed
Automatic camera positioning system
Automatic blade depth adjustment
Mutliple tool options
I-echo safety device
Flexible working area
Aviation Aluminium table

Brochure Features & Specs Request FREE Samples Finance

Perfect for

Wide-format applications
Outdoor signage
Indoor signage
Exhibitions graphics
Point of sale
Packaging
Textile & Apparel
Automotive
Furniture

Cuts

Paper
Labels
SAV
PVC Board
KT Board
Foamed PVC board
Acrylic
Composites
Leather & Textiles
Corrugated paper
Honeycomb board
plus many more……

TK4S-1516 / 1.5m x 1.6m

TK4S-2516 / 2.5m x 1.6m

TK4S-3516 / 3.5m x 1.6m

TK4S-5516 / 5.5m x 1.6m

Modular. Built to your specifications.

IECHO TK4. The precision you need, from a bespoke machine that’s configured by you to drive your business forward. The TK4 is modular. Components can be delivered through an ordinary door and built up on site, which makes it ideal for more restrictive space in the working environment.

IECHO’s TK series was developed for automatic processing in a broad range of industries. Everything about these machines is intended to make your life easier. The long list of optional extras includes overhead high-resolution cameras,
twin Y beams, a vision-to-cut system and a pallet-to-pallet auto sheet feed and stacker system – and the bed size
is completely up to you…

The TK4 has extensive options for specific applications including automatic textile pattern recognition and barcode scanning.

It’s a user-friendly operating system too, and offers a wide range of different tools. The Automatic Tool Change System has an automatic router bit changing system, so multiple types of router bits can change at random without intervention. Up to 9 different types of router bits can be set in the bit holder. What’s more, the depth of cutting tool is controlled very, very precisely by the automatic knife initialisation system.

X axis two motors

For the extreme wide beam, use the two motors with the balance technology, make the transmission more stable and accurate.

Large format cutting system

Based on the standard size of TK4S, can customize the machine according to customer's special requirements, and the maximum cutting width can reach 4900mm.

Side control box

The controlling boxes are designed at the side of the machine body, which make it easier to make maintenance.

Flexible working area

The modularized working area can be added according to customers' requirements.

Aviation aluminum honeycomb panel

Application of aviation aluminum honeycomb panel, making the inside air of panel moves freely, ensures the stability of structure without the influence of thermal expansion and contraction effect.

Dual beams cutting system

Equipped with double beams cutting system, can highly increase your production efficiency.

Automatic tool changer system

IECHO Automatic Tool Change（ATC）System, with automatic router bit changing system function, multiple types of router bits can change at random without human labor，and it has up to 9 different types of router bits can be set in the bit holder.

Automatic knife initialization system

The depth of cutting tool can be controlled accurately by the automatic knife initialization system(AKI).

IECHO motion control system

IECHO motion control system, CUTTERSERVER is the center of cutting and controlling, enables smooth cutting circles and perfect cutting curves.

Automatic camera positioning system
AKI system for accurate depth cutting
Diversified cutting tools
I-echo safety device
Flexible working area
Aviation Aluminium table
