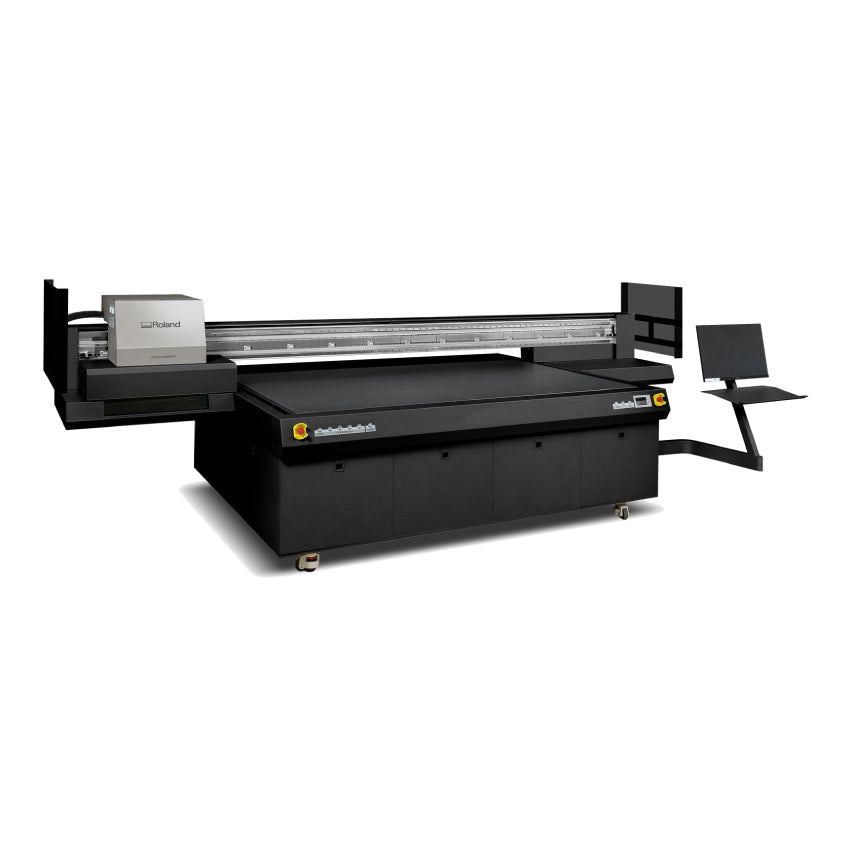

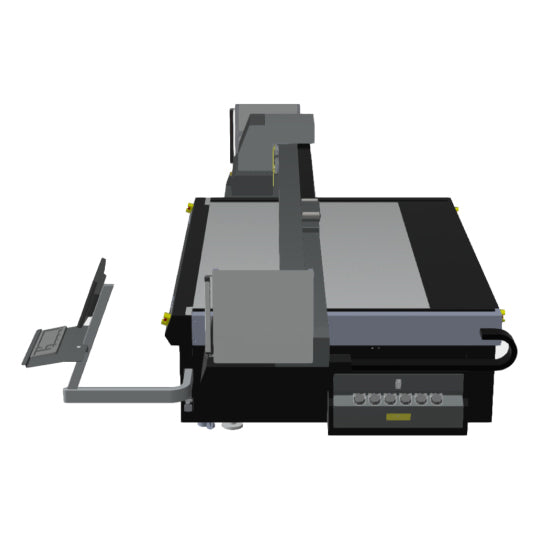

Roland EU2-1000MF | UV Flatbed Printer

Speak to a solutions consultant : 01948 800379

Help me choose the right machine Request a Quote

Description

High Production UV Flatbed Printer

The NEW Roland EU2-1000MF is perfect for printing direct onto signage, acrylic, foamex, aluminium composite, wood and much more

Key Features

High image quality
1220 x 2440mm (8 x 4ft) bed size
95mm max height of media
Up to 43.5 m²/h (1.5 x faster than previous model)
CMYK or CMYK White & Gloss options
Rolands renowned reliability & support
Runs on Roland Versaworks 7
VERY LOW ink costs
Solenoid-assisted alignment pins for quick and accurate setup
4-zone vacuum system for better media hold
Air-assisted loading to support positioning

Brochure Features & Specs Request FREE Samples Finance

The Roland EU2-1000MF is perfect for printing:

Signage
Exhibition Graphics
Interior décor
POS
Safety Signs
Printing promotional products
Bespoke gifts and products
Packaging mock-ups
Production gift ware

What can the Roland EU2-1000MF print onto?

Almost anything! here's a small list of the sort of material that this UV flatbed printer can print onto

Acrylic
Glass
Wood
Ceramic
Plastics
Canvas
Slate
PET
PVC
Foamex
Aluminium Composite
Paper
Vinyl

Do you want to use a UV flatbed printer to print on another material?

Don't worry, we have you covered. Simply get in contact with us by clicking here to make arrangements for some printed samples

Coming Soon..

EU2-1000MF 6C / 1220x2440mm

EU2-1000MF 4C / 1,220 x 2,440mm

The Roland EU2-1000MF UV flatbed printer is a high production printer which allows you to print high-quality graphics at high speeds directly onto substrates.

This large UV printer has a printable bed size of up to 2,440 mm x 1,220 mm and with a maximum height of 95 mm.

It can print on to many substrates such as PVC panels, foam panels, corrugated cardboard, aluminium plates and more.

The EU2-1000MF has options for 4 colour or 6 colour configurations. Meaning that a 4 colour option would allow for 4 print heads and a 6 colour option would allow for 6 print heads. Giving you some serious speed whilst maintaining reliable, high-quality printing with high-density.

Roland's EU2-1000MF uses low-cost E-US inks, a liquid-cooled LED lamp system, a four-zone vacuum bed, air-assisted loading to support positioning and many more features.

New Variable dot Industrial Print Heads

Ricoh Gen6 industrial printheads with variable dot technology deliver outstanding print quality with high image details, delivering up to 1.5× higher productivity compared to the previous generation and a maximum print speed of 43.5 m²/h

Greenguard Gold Certified E-US inks

Greenguard Gold Certified inks are low VOC and safe for indoors

Media Ionizer

Features a media ionizer to reduce static and ensure ink-firing accuracy

2.5-liter ink tanks

Easy ink loading allows you to refill the 2.5-liter ink tanks as you go, for high productivity, high volume printing

Improved Media Loading

Air-assisted positive air pressure loading to support substrate positioning

Electronic vacuum bed

4-zone electronic vacuum bed automatically adds air suction and support in specific areas

Solenoid alignment pins

Solenoid alignment pins provide accurate media placement

Liquid cooling

Liquid cooling increases the lifespan of the LED lamp while improving print curing processes

Workflow is more practical and efficient. A key addition is the ability to calculate ink costs directly in the software, helping users to: Estimate job costs accurately | Set the right pricing | Protect margins

Designer Object Decoration Add-On

With Designer Object Decoration, preparing print jobs for signage and board production with the EU2-1000MF is faster and more efficient. Easily create and manage layouts for foam board, cardboard, and other rigid materials, optimizing your workflow for short runs and batch production. The Position Guide helps you quickly align multiple panels on the table, reducing setup time and ensuring consistent results across every job. Designer also makes it simple to generate white and gloss layers, so you can add impact and value to your prints without complex file preparation. Everything is ready for production in just a few steps

PrintAutoMate Add-On

Automate jig-based printing on Roland DG flatbed printers with a cloud-based workflow platform designed to simplify the production. PrintAutoMate removes manual setup steps, reduces errors, and keeps flatbed productionrunning efficiently

Why the Roland EU2-1000MF | UV Flatbed

The new Roland DG EU2-1000MF, the latest large-format UV flatbed, built to deliver strong productivity, reliable print quality and real business value. The EU2-1000MF has been developed to help you increase your production capacity, offering the flexibility needed for large and varied jobs with a print area of 2,440 × 1,220 mm and media thickness up to 95 mm.

Powerful Features for Exceptional Results

At the core of the machine is a new printhead configuration, delivering up to 1.5× higher productivity compared to the previous generation and a maximum print speed of 43.5 m²/h. This means faster turnaround, more jobs per day and, ultimately, better profitability for you.

The EU2-1000MF is equipped with cutting-edge features. The four-zone electronic vacuum bed ensures secure media placement and air-assisted loading to support media positioning, while the liquid-cooled LED lamp system enables efficient curing of prints, reducing energy consumption. Paired with high-density, cost-effective E-US inks, this UV flatbed printer delivers vibrant, durable results with every project.

With Versaworks 7 RIP software, the EU2-1000MF offers intuitive control over print settings, color management, and job layout. And with module add-ons including Designer Object Decoration and PrintAutoMate makes it ideal for streamlining production workflows.

Broad Application Flexibility

Whether you're creating high-quality signage, trade show graphics, custom contour-cut signs, or interior décor, the EU2-1000MF provides unmatched versatility. Its ability to print directly onto diverse materials enables businesses to broaden their product offerings and stay competitive in a
dynamic market. As a Roland UV flatbed printer, it delivers superior results while reducing production time and costs.
